Prepare for Installation

Network and Switch Requirements

ANetD devices are PoE / PoE+ plug-and-play. A properly configured network infrastructure will ensure a seamless installation. Listed below are the recommended network and PoE switch requirements:

  • TCP/IP Switches
  • Power over Ethernet (PoE/PoE+) Switch Ports
  • DHCP Server
  • Multi-cast enabled
  • Minimum CAT5 cable with maximum of 300 feet from the device to switch

Helpful Installation Documents

Equipment Compatibility

Below are products that have been shown to work with our devices.
(note: Advanced Network Devices does not represent, endorse or guarantee any of the following.)

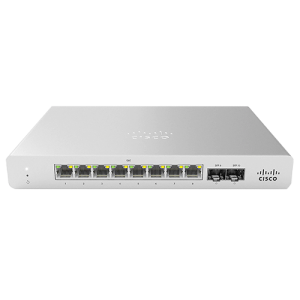

Switches / Midspan / Repeaters

Although most of our devices will operate with PoE power, PoE+ is recommended for some of the larger devices and LCD devices for maximum performance.

PoE ports must carry 15.4 W (IEEE 802.3af). Lower port numbers generally work better in some brands, especially if higher port numbers lose some power when lower ports power other PoE devices. Choose a reputable switch and understand its power delivery capabilities. Brands that have worked fairly consistently include:

  • D-Link
  • Adtran Netvanta
  • Cisco
  • HP
  • Juniper
  • PowerDsine
  • Dell

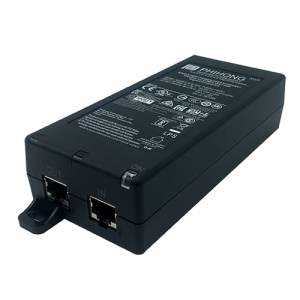

Power Injectors

  • PoE+ (IEEE 802.3at)
    • Phihong
  • PoE (IEEE 802.3af)
    • Phihong
    • ZyXEL POE12
    • MiLAN MIL-L100i

External Microphones

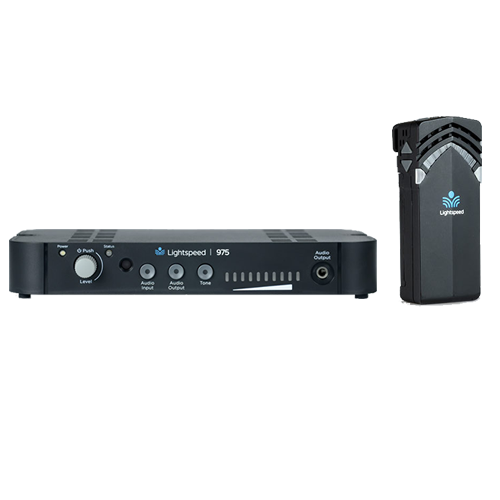

  • Voice Amplification: Lightspeed’s 975 and Flexmike pendant microphone
  • Paging Station: Astatic AST878DM Desk Microphone with PushTo-Talk Button

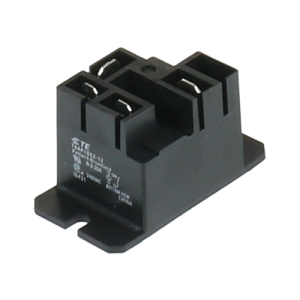

External Relay

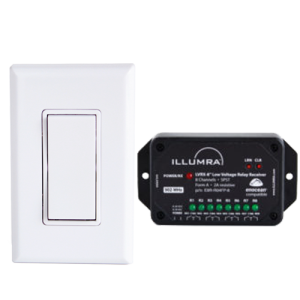

Wireless Light Switch and Controller

  • Illumra Wireless Single Rocker Wireless Light Switch E9t-S1Axx
  • Illumra 8 Channel Low Voltage Controller E9R-R04FP-8
